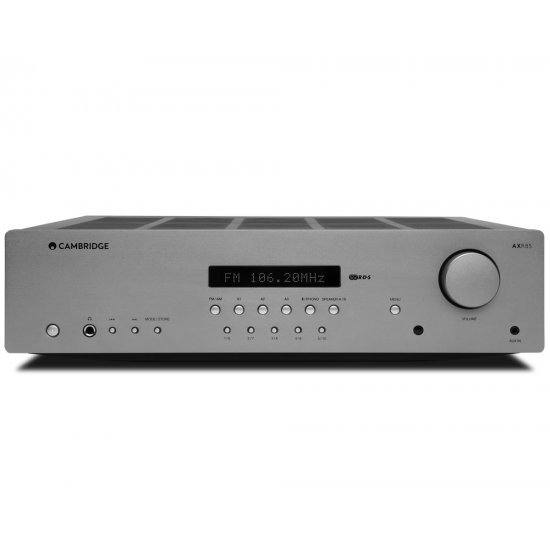

Cambridge Audio AXR 85 integruotas stiprintuvas

AXR85

FM/AM STEREO RECEIVER

The AXR85 boasts 85 watts of power, a built-in phono stage for connecting record players with Moving Magnet cartridges, a front panel 3.5mm input for iPod/MP3 players, built-in FM/AM radio with RDS and 30 presets and four analogue inputs for connecting all your music, AV and audio sources. In addition, the built-in bluetooth receiver allows you stream your favourite music from your smartphone, tablet or PC.

TECH SPECS

POWER OUTPUT

85 watts (into 8Ω)

THD (UNWEIGHTED)

<0.01% @ 1kHz, 80% of rated power <0.15% 20Hz - 20kHz, 80% of rated power

FREQUENCY RESPONSE (-1DB)

5Hz - 50kHz

S/N RATIO (REF 1W)

>82dB (unweighted)

INPUT IMPEDANCES

47k ohms

POWER AMP DAMPING FACTOR

>50

STANDBY POWER CONSUMPTION

<0.5W

MAX. POWER CONSUMPTION

500W

BASS/TREBLE CONTROLS

Shelving, ultimate boost/cut +/- 10dB @ 100Hz and 20kHz

SUBWOOFER OUTPUT

200Hz 2nd order L+R Level follows volume setting

DIMENSIONS

110 x 430 x 340mm (4.3 x 16.9 x 13.4”)

WEIGHT

8.1kg (17.8lbs

BLUETOOTH

5.0 A2DP/AVRCP supporting SBC

TUNER BANDS

European AM (522-1629kHz) FM (87.5-108MHz) / US AM (530-1710kHz) FM (87.5-108MHz)

AERIAL INPUTS

FM 75 ohms, Coaxial. AM 300 ohms wire loop/ single wire

SIGNAL TO NOISE (TUNER)

60dB typical (FM)

DISTORTION (TUNER)

<0.4% @ 1kHz 50kHz deviation (FM mono) <0.6% @ 1kHz 50kHz deviation (FM stereo)

IN THE BOX

AXR85 Stereo Receiver, Power Cable, Remote Control, 2 x AAA Batteries
