ULTIMA INTEGRATED
The ULTIMA INTEGRATED is a class-leading 125-watt integrated amplifier benefitting from the latest dual-feed-forward error-correction topology, Chord Electronics’ legendary proprietary ultra-high-frequency power supplies, plus an unmistakable industrial aesthetic.
Designed by Chord Electronics’ founder, owner and chief engineer, John Franks, the advanced ULTIMA circuit monitors and immediately corrects audio signals before the output stage, for astonishing signal accuracy from a one-box integrated device.
The ULTIMA INTEGRATED also takes advantage of the very latest developments in advanced low-distortion power supplies - devices offering exceptionally low noise and outstanding amplifier operation - for even greater fidelity.
A four-input design, one fully balanced and three unbalanced, all enjoy individual buffering and are selectively filtered against potential ingress from radio frequency interference; selection switching is via microprocessor-controlled sealed relays.
The ULTIMA INTEGRATED is the first new Chord Electronics integrated amplifier for seven years and remains the sole full-width integrated model in the range.

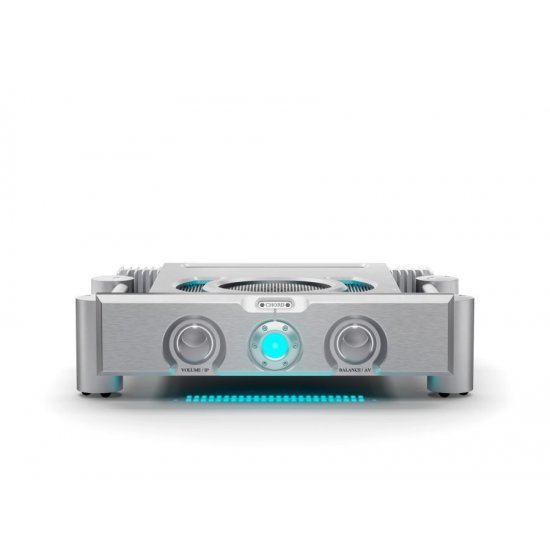

All metalwork is precision-machined from solid aircraft-grade aluminium, including Chord Electronics’ iconic Integra Legs. The fascia sports a 28-mm-thick front panel with a perfectly symmetrical aesthetic, centered around a spherical power on/off control with polychromatic lighting, flanked by illuminated volume and balance controls.
KEY FEATURES
All-new design
Dual feed-forward error correction
AV bypass
Proprietary MOSFET
HF Switch mode power supply
Fully Balanced Circuitry
Included Top Light Ring
Solid Aluminium ChassisTECHNICAL SPEC
Frequency response
10 Hz-200 kHz +/- 3 dB
THD
0.01 % 20 Hz-20 kHz
Signal-to-noise ratio
90 dB on all inputs
Input impedance
100 kOhm
Input maximum voltage
3 V RMS
Output maximum voltage
35 V RMS
Gain
21dB
Channel separation
100 dB
Operation voltage
80-250 V AC auto-switching
Power output
125 W into 8ohm
Power consumption
200 W
Inputs: 1x stereo balanced XLR inputs, 3x stereo unbalanced RCA
Outputs: 1x stereo XLR
1x stereo balanced XLR AV bypass input
1 x 12 V trigger output/input
INCLUDED ACCESSORIES
ULTIMA INTEGRATED Quickstart guide
Safety instructions
10A Mains IEC cable
IR system remote control
2x AAA batteries
Chord ULTIMA INTEGRATED integruotas stiprintuvas
9999,00€
Be PVM: 8263,64€
- Prieinamumas: Sandėlyje
- Modelis: Chord ultima integrated
- SKU: vnt
