Goldring E4 patefono galvutė

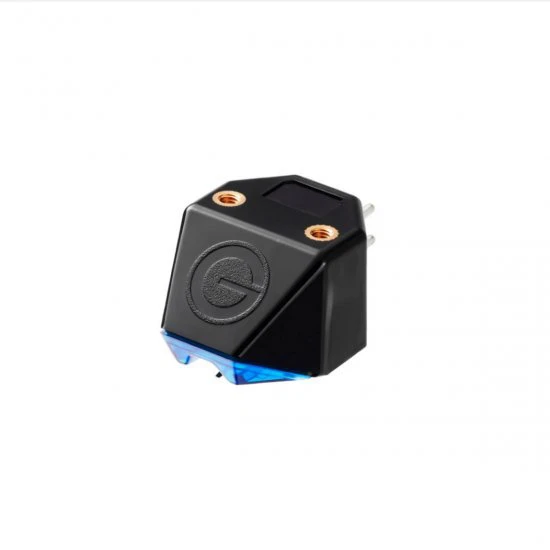

Goldring E4

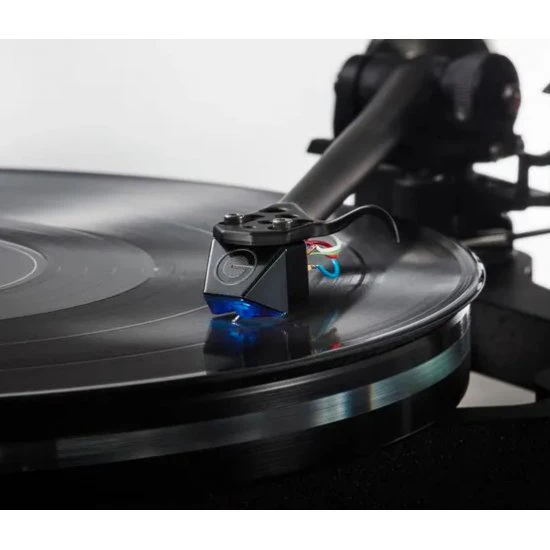

Goldring introduces its flagship E Series moving magnet cartridge: E4. Designed as the ultimate upgrade for any modern budget or midrange turntable, E4 represents the pinnacle of E Series engineering and performance.

E4 is designed to be compatible with all medium-to-high-mass tonearms of the type found on the majority of budget to midrange turntables. And because it’s constructed using the same high-quality core as the other E Series cartridges in the range, E4 is ideal both for those who wish to upgrade an obsolete cartridge in its entirety or those who want to boost the performance of their existing E Series cartridge by replacing the stylus

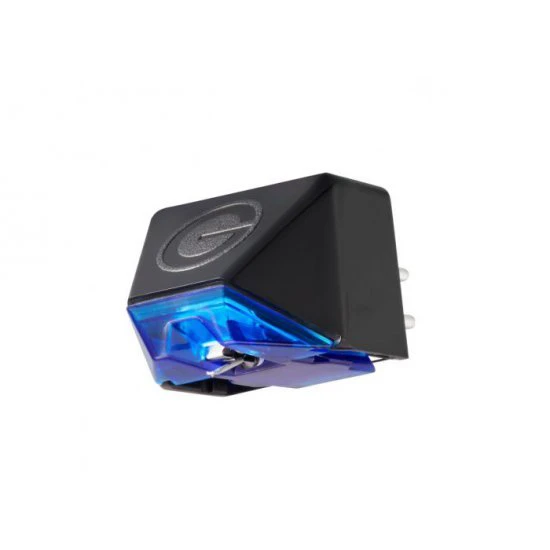

The E4 features a ‘nude’ super-elliptical stylus of just 7.6 x 18 microns (0.3 x 0.7 mil)

SPECIFICATIONS

Frequency Range20 Hz – 20 kHz

Channel Balance< 1.5 dB @ 1 kHz

Channel Separation> 20 dB @ 1 kHz

Sensitivity3.5 mV (1 kHz @ 5 cm/s)

Static Compliance 20 mm/N

Vertical Tracking Angle20°

Stylus Radius 7.6 micron (0.3 x 0.7 mil)

Stylus TypeNude eliptical

Load Resistance 47 kΩ

Load Capacitance 100 – 200 pF

Internal Inductance 400 mH

Internal Resistance410 Ω

Cartridge Mass 6.9 g

Fixing Centre12.7 mm (0.5 in)

Playing Weight1.5 – 2.5 g (1.75 g recommended)
