M&K Sound IW500 įmontuojama garso kolonėlė

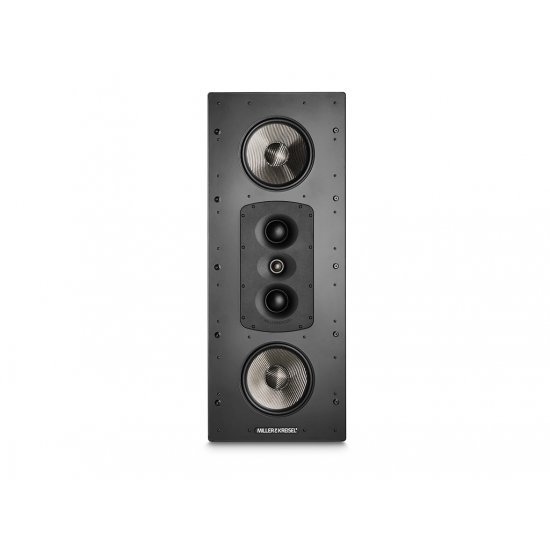

IW500 In-Wall Speaker

Groundbreaking design features for truly natural sound

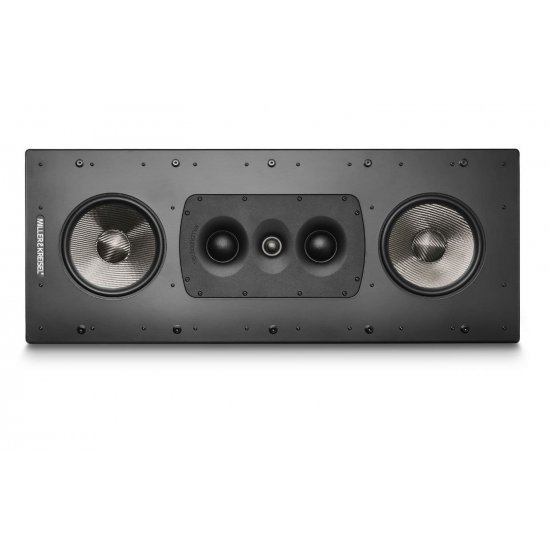

The first THX® Certified Dominus in-wall loudspeaker for very large home cinemas with both vertical and horizontal installation flexibility

M&K Sound has combined a high-performance one-inch soft dome tweeter with a precision-crafted aluminum waveguide to ensure accurate and focused vertical and horizontal dispersion characteristics. The design marks the first time M&K Sound has developed a horn-loaded loudspeaker which guarantees real and natural delivery, whether placed vertically or horizontally.

The IW500 combines two Kurt Muller three-inch soft dome midrange drivers (800 Hz to 2500 Hz) with shallow waveguides. These pair with a complex crossover network to promote an audible smoothness and non-fatiguing character across the frequency range. By consolidating excellent vertical response from the crossover with excellent horizontal dispersion from the vertical driver array, the IW500 produces a profoundly flat power response.

The IW500’s onboard dual 8-inch woofers employ large magnets and carbon fiber cones to achieve its high sensitivity rating (92 dB SPL @ 1 meter with 2.83V), enabling a full-bodied and visceral low-frequency response. M&K Sound’s proprietary ‘Capacitive Coupling’ design feature in the crossover allows for a much smaller enclosure than normally required. It also ensures tighter bass response, increased impedance (easier to drive) and less distortion.

The IW500’s revolutionary crossover is responsible for the loudspeaker’s smooth frequency and polar responses. Transition between high, mid and bass frequencies is seamless, a trademark designfeature of M&K Sound’s reference loudspeakers. The IW500 includes newly developed transducerswith extra-large magnets for less compressed and less distorted sound.

IW500

Specifications

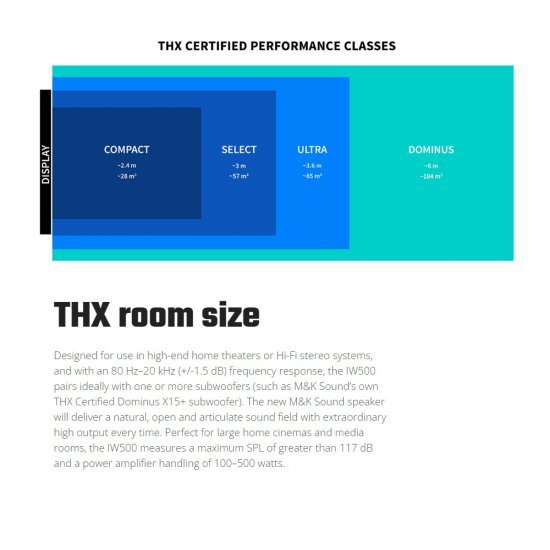

THX® Certification

THX® Certified Dominus

Nominal System Impedance 4 ohm (Z-min 4.6 ohm)

Frequency Response 80-20K Hz (on axis response in room +/- 1.5dB)

Low Frequency Roll Off 55Hz (-10 @55 Hz near field)

Crossover Frequencies 700Hz , 2.5K Hz Power Resonse optimized

Tweeter 1 x 1 " Dome Coated silk dome / Scan speak

Mid-range 2 x 3" Coated Sik dome w/ Rear Chamber

Woofer 2 x 8" Carbon Fibre laminated

Power Handling 500 watt Long term IEC-268-5 (cycled input 77-20K

Hz)

Power Handling 300 watt Rated IEC-268-5 (constant input 77-20K

Hz)

Recommented Amp Power 100-500 watt Recommended Amp Power Min / Max

Sensitivity 92dB Average SPL 2.83 volt / 1M (on axis

100-20kHz)

Max SPL Continuous 113 dB Sinewave 100-8000 Hz / THD < 10%

Max SPL Peak 121 dB Sinewave 100-8000 Hz / THD < 10%

System Principle Sealed With capcitive coupling

Connection Terminal Gold

plating Push terminal 4mm Cable

Finish Paint Black cabinet

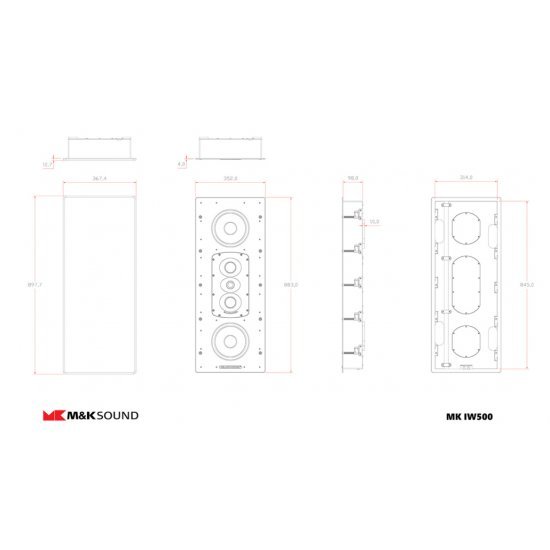

Cutout HxW 33.35 x 12.44 inch / 847 x 316 mm

Cabinet dimensions HxW 33.27 x 12.36 inch / 845 x 314 mm

Cabinet depth D 3.86 inch / 98 mm

Dimensions Grille HxWxD 35.35 x 14.45 inch / 898 x 367 mm

Weight Netto 40.8 lbs / 18.5 kg
