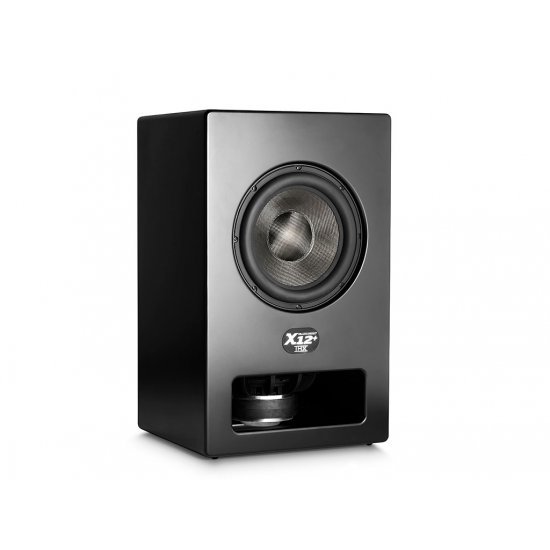

M&K Sound X12+ bosinė kolonėlė

The most advanced subwoofers technologies for the future

New Carbon Fibre Woofer Cones have been developed for all models with ultra-high strength and rigidity to accommodate the added power and excursion of the new X+ Series. M&K Sound’s proprietary CNC-machined, extruded aluminium Distortion Killer Shorting Rings also guarantee absolute control and distortion-free, exemplary performance in all settings.

M&K Sound’s iconic Push-Pull subwoofer architecture and “reversed double driver” non-isobaric configuration mean that both drivers in the cabinet are ‘exposed’ to room air. Consequently, and like the X-Series before, the X+ Series models are effectively two subwoofers in one cabinet enabling a further associated reduction in distortion. This is made possible by having one inverted driver in relation to the other cancelling non-linearities to produce totally symmetric waveforms.

The X15+, X12+ and X10+ all feature full 25mm MDF construction and bracing for negligible panel vibrations or cabinet resonances, and increased venting at the base of the woofers mitigates distortion due to air turbulence. These milled cavities also act as convenient carrying handles for installation efficiency

M&K’s function and form co-exsist in harmony

Cosmetic makeovers for the X+ Series arrive in the form of recessed front baffles and convenient invisible magnetic grille attachment mechanisms. Harmonizing with the bold but Scandi-cool looks of the M&K S150 and S300 speakers, the new subwoofers offer cleaner lines and more discreet curved edges to complement living spaces or dedicated home cinema rooms

Frequency Response: 18-200 Hz (Average Response in Room +/- 3 dB)

Frequency Roll Off – THX EQ: 18 Hz (-6 dB 20 Hz Nearfield )

Frequency Roll Off – Anechoic EQ: 18 Hz (-6 dB 20 Hz Nearfield)

Variable Low Pass Filter: 40-200 Hz Continuesly Variable / 4th Order

Loss Pass Filter Bypass: 40-200 Hz No Low Pass

Fixed 80 Hz Filter Yes (Equivalent to THX 80Hz Ref Low Pass)

Phase Control: 0 – 180 deg Continuesly Variable

Line level input/output: 2 x RCA phono Left / Right – input / output

Line level input/output: 2 x XLR Left / Right – Input / output

Amplifier type: Analog input / switch mode power output

Drive unit: 2 x 12” Extra Long Throw

System Principle: Push Pull Sealed enclosure

Amplifier Power output RMS: 600 watt 0.5% THD at 300W into 4 ohms

Amplifier Power output Peak: 1200 watt

Standby Power Consumption: 0.5 watt 120W Average, 800W Max

Headroom Limiter Maximizer: Yes (Dynamic driver excursion control)

Auto Power detect on/off: Yes

Colors

Finish: Satin Black

Dimensions

Dimensions H x W x D 28.7 x 17.7 x 15.2 in / 72.8 x 45.0 x 38.5 cm

Weight: Netto 101.2 lbs / 45.9 kg

Manual No

Manual Yes Gloves, US/EU Power cords, Rubber Feet
