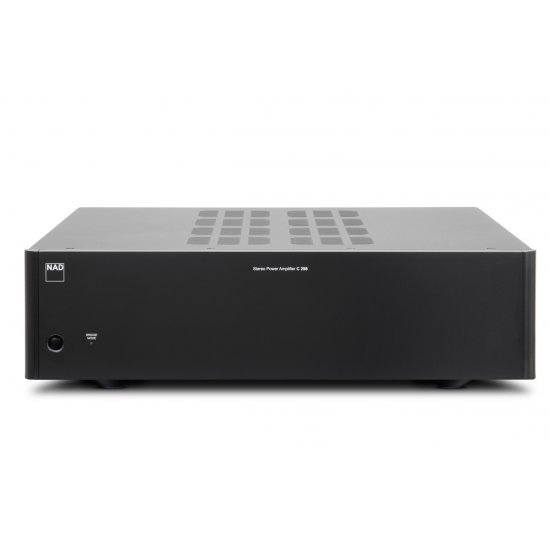

NAD C 298 galios stiprintuvas

Redefining the State of the Art with Purifi Technology

NAD has introduced some of the most innovative amplifier technology in its nearly 50 year history, starting with the 3020 on through such cutting edge models as the 2200, the 208, and the M2. Now we are making the amazing new Eigentakt™ (self-clocking) technology, recently introduced to the world in the EISA Award winning Masters M33, available to a wider audience with the very affordable C 298. We are thrilled to provide this unprecedented level of performance. In short, a perfect companion for the C 658 BluOS Streaming DAC pre-amp.

ANALOG AUDIO INPUT/LINE OUT

THD (20 Hz – 20 kHz)<0.0005 % at 2V outSignal-to-Noise Ratio>120 dB (IHF; 20 Hz – 20 kHz, ref. 2V out)Channel separation>110 dB (1 kHz)

>100 dB (10 kHz)Input impedance (R and C)Single-ended: 56 kohms + 280 pF

Balanced: 56 kohms +280 pFMaximum input signal>7.0 Vrms (ref. 0.1 % THD)Output impedance390 ohmsFrequency response±0.1 dB (20 Hz – 20 kHz)Maximum voltage output -IHF load?>7.0 V (ref. 0.1 % THD)

ANALOG AUDIO INPUT/SPEAKER OUT

Rated output power into 8 Ohms and 4 ohms(Stereo mode) 80 W (ref. 20 Hz-20 kHz at rated THD, both channels driven)185 W at 8 ohms

340 W at 4 ohmsRated output power into 8 Ohms (Bridge mode, ref. 20 Hz-20 kHz at rated THD, both channels driven)620 W at 8 ohmsTHD (20 Hz – 20 kHz)<0.005 % (1 W to 185 W, 8 ohms and 4 ohms)Signal-to-Noise Ratio>98 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

>120 dB (A-weighted, ref. 185 W out in 8 ohms)Clipping power (Stereo mode, at 1 kHz 0.1 % THD)>200 WClipping power (Bridge mode, at 1 kHz 0.1 % THD)>690 WIHF dynamic power (Stereo mode, at 1 kHz 1 % THD)8 ohms: 260 W

4 ohms: 490 W

2 ohms: 570 WIHF dynamic power (Bridge mode, at 1 kHz 1 % THD)8 ohms: 1000 W

4 ohms: 1100 WPeak output current>25 A (in 1 ohm, 1 ms)Damping factor>800 (ref. 8 ohms 20 Hz – 6.5 kHz)Frequency response±0.2 dB (20 Hz – 20 kHz)

-3 dB at 60 kHzChannel separation>100 dB (1 kHz)

>80 dB (10 kHz)Stereo Mode input sensitivity (for 185 W in 8 ohms)Fixed Gain mode: 1.43 VStereo Mode GainFixed Gain mode: 28.6 dBLine In – Balanced and Single-endedVariable Gain mode: 8.5 dB – 28.5 dBBridge Mode SensitivityFixed Gain mode: 3.78 V for 620 W in 8 ohmsLine In – Balanced and Single-endedVariable Gain mode at maximum: 1.41 V for 620 W in 8 ohmsBridge Mode GainFixed Gain mode: 25.4 dBLine In – Balanced and Single-endedVariable Gain mode: 14.5 dB – 34.5 dBStandby power<0.5 W

DIMENSION AND WEIGHT

Gross dimensions (W x H x D)435 x 120 x 390 mm (17 1/8 x 4 3/4 x 15 3/8 inches)Net weight11.2 kg (24.7 lbs)Shipping weight13.6 kg (30 lbs)
