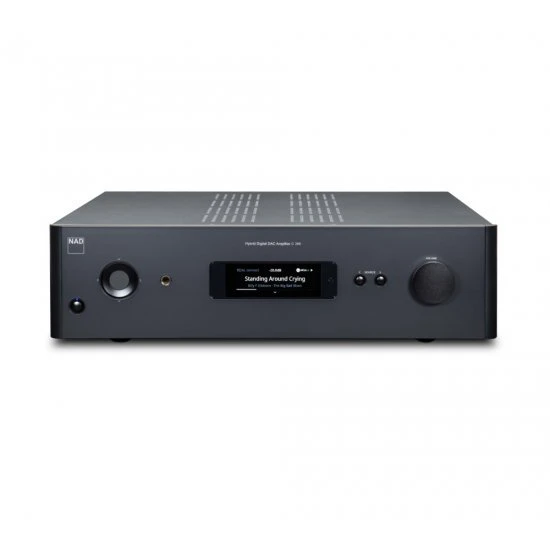

NAD C 399 stereo stiprintuvas su DAC funkcija

Trickled down from NAD’s Masters Series, the C 399’s HybridDigital nCore amplifier can deliver 180 Watts per channel continuous power, and 250 Watts per channel instantaneous power. Highly efficient and remarkably powerful, the HybridDigital nCore amplifier can produce musical transients effortlessly. The design is renowned for its wide bandwidth, flat frequency response, clean clipping behaviour with instant recovery, high current capability, and stability into demanding low-impedance speaker loads. Noise and distortion are vanishingly low under all operating conditions. The minute levels of harmonic distortion are dominated by sonically benign second and third harmonics. The Hypex nCore design enables the C 399 to produce neutral, distortion-free sound even at very high listening levels, with exquisite detail, superb portrayal of space, and thrilling dynamics.

Also trickled down from the Masters Series is the ESS Sabre 9028 high-resolution DAC, a design noted for near-zero levels of clock jitter, ultra-low noise and distortion, and wide dynamic range. This premium DAC enables the C 399 to reproduce all your digital sources with amazing musicality, stunning clarity, and precise soundstaging.

Future Proof

In 2007, NAD introduced Modular Design Construction, an innovative architecture for adding new functions to existing components. Many NAD products have rear-panel slots for MDC modules that perform HDMI switching, BluOS multi-room music streaming, Dolby Atmos surround processing, and other functions.

The C 399 is the first product to feature NAD’s new MDC2 architecture. By enabling two-way communications between the module and component, MDC2 opens up the future for new upgrades.

Equipped with Wi-Fi and Ethernet, the optional MDC2 BluOS-D module lets listeners play music from their favourite streaming services through the C 399, using the acclaimed BluOS Controller app for Android, iOS, macOS, and Windows. Like all BluOS-enabled products, the MDC2 BluOS-D has integrated support for dozens of streaming services; and supports Apple AirPlay 2, Spotify Connect, and Tidal Connect. Two-way communications also enable the MDC2 BluOS-D to stream music from sources connected to the C 399 to BluOS-enabled components in other rooms.

The Dirac Live function lets you measure your room’s acoustics using a supplied microphone and intuitive app, and then upload correction curves to the MDC2 BluOS-D. By compensating for acoustic anomalies in your listening environment, Dirac Live dramatically improves bass clarity, imaging, and timbral accuracy. Thanks to its two-way architecture, the MDC2 BluOS-D performs room correction for all sources connected to your C 399.

Everything’s Connected

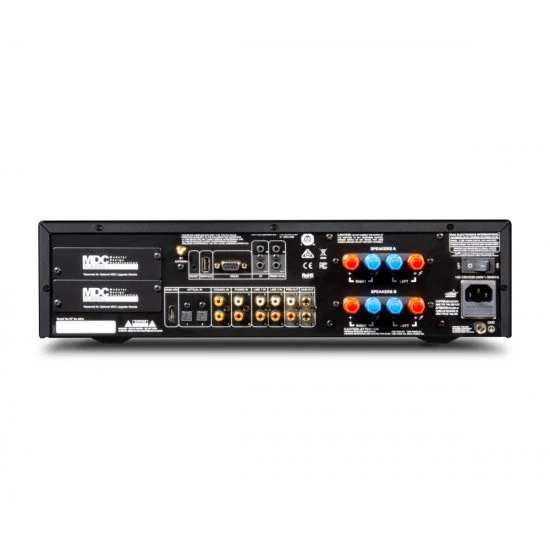

The C 399 can accommodate all your digital and analogue sources. Its MM phono stage delivers ultra-precise RIAA equalization, extremely low noise, and high overload margins. The phono preamp also features an innovative circuit that suppresses the infrasonic noise present on all LPs, without compromising bass response. There are two sets of line-level line inputs, with low-noise buffer amplifiers to prevent sonic degradation. The C 399 has two optical and two coaxial digital inputs, plus an HDMI-eARC port for playing audio from a connected TV, while controlling amplifier output with the TV’s remote control.

In addition to two sets of speaker outputs, the C 399 has preamp output jacks and dual subwoofer outputs. Two-way apt-X HD Bluetooth allows 24-bit streaming from mobile devices, and high-quality output to Bluetooth headphones. Also built-in is a dedicated headphone amplifier with low output impedance and high output voltage capability, enabling the C 399 to drive demanding high-impedance studio monitor headphones.

Line In, Speaker Out (Analog bypass on)

Continuous output power into 8 ohms and 4 ohms>180W (ref. 20 Hz-20 kHz at rated THD, both channels driven)THD (20 Hz – 20 kHz)<0.02% (250 mW to 180 W, 8 ohms and 4 ohms)Signal/Noise Ratio>95 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)Clipping power210W (at 1 kHz 0.1 % THD)IHF dynamic power8 ohms: 217 W4 ohms: 400 W2 ohms: 506.4 WPeak output current>26 A (in 1 ohm, 1 ms)Damping factor>150 (ref. 8 ohms, 20Hz to 6.5kHz)Frequency Response±0.3 dB (20 Hz – 20 kHz)Channel Separation>90dB (1 kHz)>75dB (10 kHz)Input sensitivity (for 180 W in 8 ohms)Line In: 201 mVDigital In: 10.25% FS

Preamplifier

Line Input, Pre Out (Analog bypass on)

THD (20Hz-20kHz)<0.002 % at 2 V outSignal/Noise Ratio>106dB (IHF; A-weighted, ref. 500 mV out, unity gain)Channel Separation>100dB (1 kHz); >90 dB (10 kHz)Input Impedance (R and C)56 kohms + 100 pFMaximum Input Signal>4.6 Vrms (ref. 0.1 % THD)Output ImpedanceSource Z + 320 ohmsInput Sensitivity65mV (ref. 500 mV out, Volume maximum)Frequency Response±0.3 dB (20 Hz – 20 kHz)Maximum voltage output – IHF load>>5 V (ref. 0.1 % THD)

Phono

Phono Input, Pre Out (Analog bypass on)

THD (20Hz-20kHz)<0.01% at 2 V outSignal to Noise Ratio>84dB (200 ohms source; A-weighted, ref. 500 mV out)Input Impedance (R and C)46 kohms/100 pFInput Sensitivity1.08mV (ref. 500 mV out, Volume maximum)Frequency Response*±0.3 dB (20 Hz – 20 kHz)Maximum Input Signal at 1kHz>80 mVrms (ref. 0.1 % THD)

Headphone

Line Input, Headphone Out (Analog bypass on)

THD (20Hz-20kHz)<0.005% at 1V outSignal/Noise Ratio>107 dB (32 ohms loads; A-WTD, ref. 1V out, unity gainFrequency Response±0.3 dB (20 Hz – 20 kHz)Channel Separation>62 dB at 1kHzOutput Impedance2.2 Ohms

General Specifications

Supports bit rate/sample rateup to 24 bit/192 kHzFrequency band2.402G- 2.480GMaximum transmit power (dBm)7 dBm ± 2 dBm

Weight & Dimensions

Gross dimensions (W x H x D) **435 x 120 x 390mm(17 1/8 x 4 3/4 x 15 3/8)”Net Weight11.2kg (24.7lb)Shipping Weight13.6kg (30lb)
