NAD M10 V3 stereo stiprintuvas su tinklo grotuvu

Combining a sophisticated music streamer and powerful 100-watt-per-channel amplifier in one super-stylish chassis, the NAD M10 V3 BluOS Streaming Amplifier fully embodies the way people listen to music today. At the heart of the M10 V3’s user experience is the acclaimed BluOS multi-room music platform, which integrates dozens of streaming music services. You can queue up any music you want using the intuitive BluOS app, and hear it in pristine high fidelity through your favourite loudspeakers. The M10 V3 maintains everything that made the original M10 and M10 V2 so beloved, but improves upon the platform with the addition of NAD’s new BC1 IR remote control, support for optional Dirac Live Bass Control*, a high-performance dedicated phono input (MM), and an upgraded DAC.

GENERAL SPECIFICATIONS

Continuous output power into 8 ohms and 4 ohms>100W (ref. 20 Hz-20 kHz at rated THD, both channels driven)

THD (20 Hz – 20 kHz)<0.03 % (250 mW to 100 W, 8 ohms and 4 ohms)

Signal-to-Noise Ratio>85.1 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms)

Clipping power>130 W (at 1 kHz 8 ohms 0.1 % THD)

>230 W (at 1 kHz 4 ohms 0.1 % THD)

IHF dynamic power8 ohms: 160 W

4 ohms: 300 W

Damping factor>190 (ref. 8 ohms, 20Hz to 6.5kHz)

Frequency response±0.6 dB (20 Hz – 20 kHz)

Tone controlsTreble: ±6.0 dB at 20 kHz

Bass: ±6.0dB at 60 Hz

Channel separation>83 dB (1 kHz)

>70.5 dB (10 kHz)

Input sensitivity (for 100 W in 8 ohms)Line In: 456 mV

Digital In: -13.23 %FS

Standby power0.5W

Features & Details

BluOS Streaming Amplifier

Wireless 4.0, 4.1- and 4.2-channel surround sound option

Hybrid Digital NCore Amplifier

Continuous Power: 100W into 8/4 Ohms

Dynamic Power: 160W into 8 Ohms /300W into 4 Ohms

32-bit/768kHz ESS Sabre DAC

MQA decoding and rendering

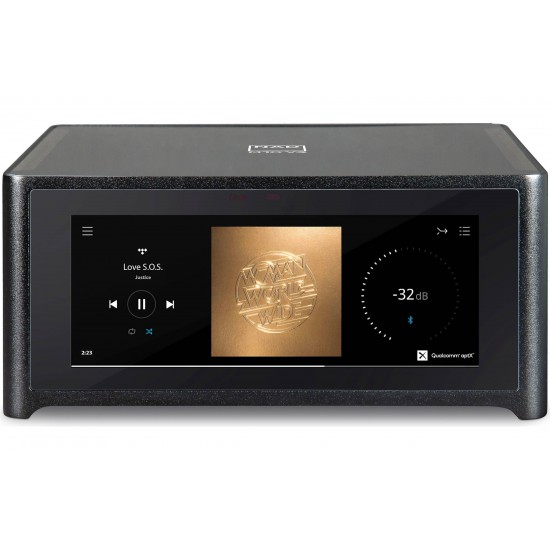

Colour LCD display

Amazon Alexa & Apple Siri voice control skills

AirPlay 2 and Two-way Qualcomm aptX HD Bluetooth

Roon Ready

Spotify Connect and Tidal Connect

NFC Bluetooth pairing for compatible smart devices

BluOS multi-room compatible

Gigabit Ethernet

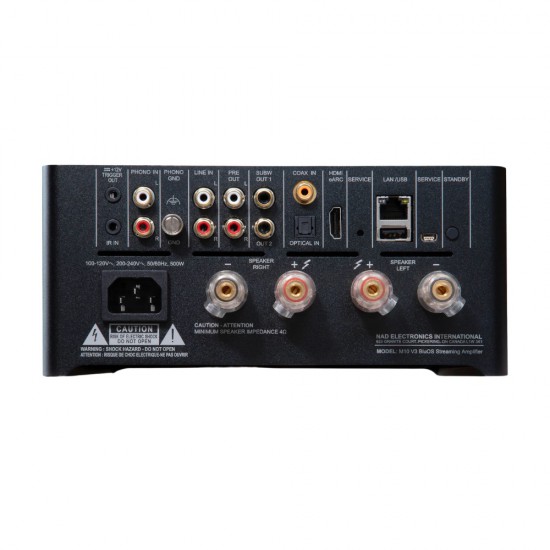

HDMI eARC, USB Type A Inputs

Stereo Line Input, MM Phono Stage, Coax/Optical Digital Inputs

Preamp output, two independent subwoofer outputs

Dirac Live with optional Dirac Live Bass Control*

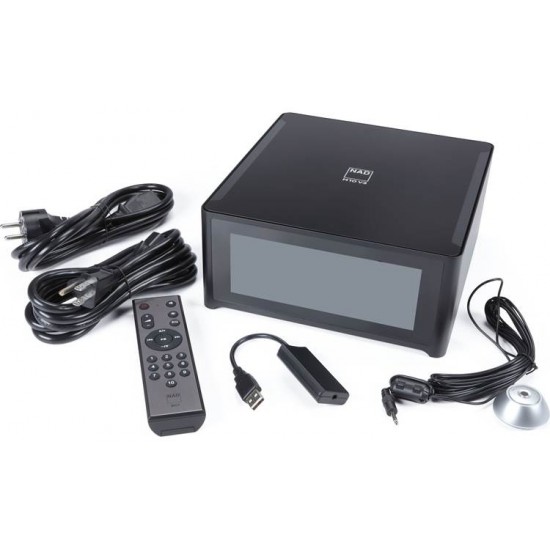

BC1 IR remote control with Dirac filter switching

IR Input, 12V Trigger Out

BluOS apps for iOS, Android, Mac OS, and Windows

Support for advanced control systems including Crestron, Control4, RTI, URC, Elan, Lutron, and iPort

*Dirac Live Bass Control is expected to be made live in the M10 V3 by end of 2024



Supported audio file formatsMP3, AAC, WMA, OGG, WMA-L, ALAC, OPUSHi-Resolution audio formatsMQA, FLAC, WAV, AIFF, Supports converted DSD playback via the BluOS desktop app (only)Sampling rateup to 24 bit/192 kHz

BluOS SECTION

Supported operating systemsPlays music from network shares on the following desktop operating systems: Microsoft Operating Systems and Mac OS X versionsUser interface mobile operating system BluOSBluOS – Free Android and iOS App available online at Google Play and Apple App storeSupported cloud services*Amazon Music Ultra HD, Spotify, Tidal Max, Deezer, Qobuz, HDtracks, HighResAudio, Murfie, JUKE, Napster, Slacker Radio, KKBox, BugsFree internet radio*TuneIn Radio, iHeartRadio, Calm Radio, Radio ParadiseBluetooth qualityBluetooth aptX HD built-inBluetooth connectivityTwo-Way (Receive and Headphone modes)Network connectivityGigabit Ethernet RJ45, Wi-Fi 5

DIMENSION AND WEIGHT

Gross dimensions (W x H x D)**215 x 100 x 260 mm

8 1/2 x 3 15/16 x 10 1/4 inchesShipping weight5 kg (11 lbs)
