Q Acoustics Concept 30 garso kolonėlės

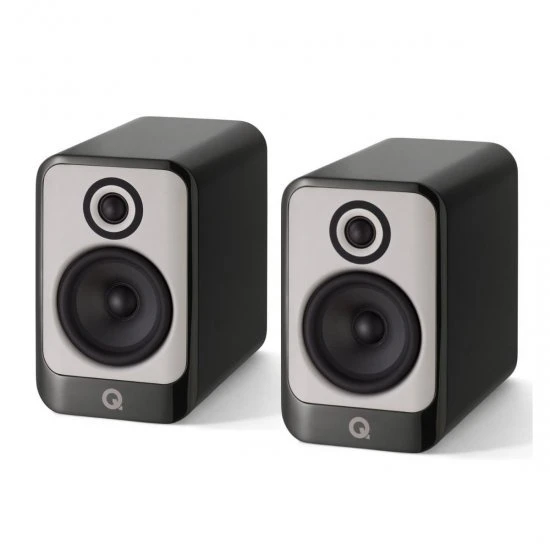

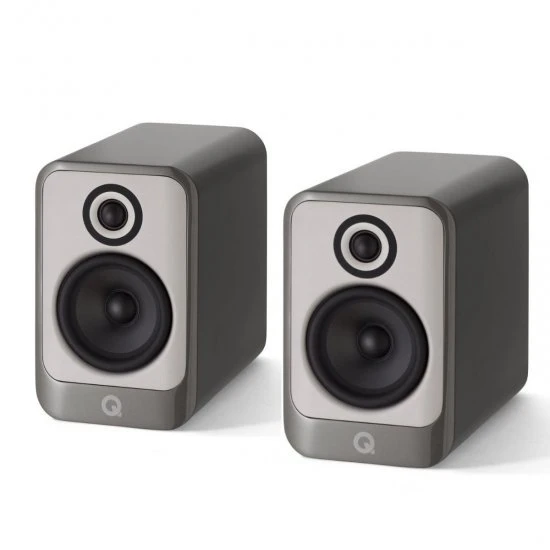

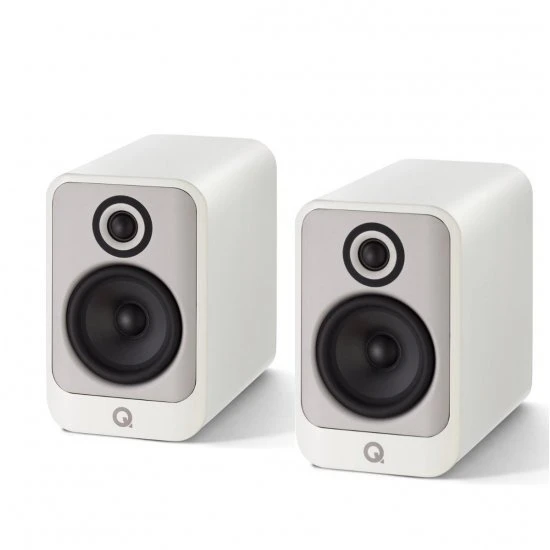

Q Acoustics Concept 30

Standmount Speaker

Taking acoustic technology and design cues from the flagship Concept 300, while also introducing new audio innovations, the Concept 30 standmount delivers truly high-end home audio performance.

SPECIFICATIONS

Bass unit 1 x 125 mm (5.0 in)

Treble unit 1 x 25 mm (0.9 in)

Frequency response(-6dB) 54 Hz - 30 kHz

Nominal impedance 6 ?

Minimum impedance 3.9 ?

Sensitivity (2.83V @ 1kHz) 87 dB/w/m

Recommended amplifier power 25-100 W

Crossover frequency 2.4 kHz

Distortion (120Hz - 20kHz, @2.83Vrms) <0.2%

Effective volume 7.0 L

Dimensions (per loudspeaker / HxWxD) 284 x 180 x 319 mm (11.2 x 7.1 x 12.6 in)

Weight (per loudspeaker) 7.9 kg (17.4 lbs)

Gelcore™ technology

Introduced in the original Concept speaker, the Gelcore™ cabinet construction is designed to minimise high-frequency noise. A unique design comprised of a non-setting gel sandwiched between two individual layers, this specially developed adhesive dissipates high-frequency vibrations, generated by the moving drivers, into heat to maintain a focused audio performance.

Isolation suspension system

A variation on the hugely effective ‘isolation base’ principle first seen on Concept 300 means the Concept 30 have a suspension system in the form of a sprung baseplate. Two plates are separated by suspension ‘spheres’ that effectively isolates the cabinet from interference from external vibrations, providing tighter stereo imaging, while also bringing greater depth.

P2P™ (Point to Point™) technology

To keep the cabinet as rigid as possible, P2P™ (Point to Point™) internal bracing is employed. First introduced in the Concept 500, reinforcement is fitted to interior areas of the cabinet susceptible to low-end frequency reverberations.
