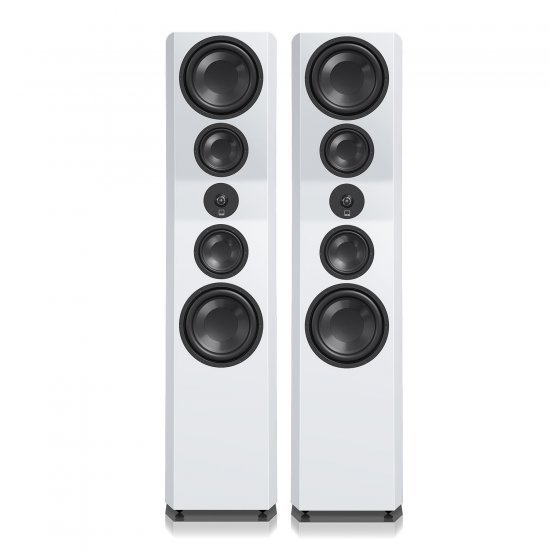

Ultra Evolution Pinnacle Speaker
Frequency Response / Acoustic Data:
Frequency Response: 24Hz to 40kHz (+/-3 dB)
Nominal Impedance: 6 ohms
Sensitivity: 88dB (2.83V @ 1 meter full-space, 300Hz – 3kHz)
Recommended amplifier power: 20 – 300 watts
Speaker Specs:
Floor-standing Tower Loudspeaker
Piano gloss black, piano gloss white, real black oak veneer finish options
Dual gold-plated 5-way binding posts
Dual 3” wide-flared rear-firing ports
Cloth grille with magnetic retention system
Elastomer screw-in feet – adjustable for level
Spiked metal screw-in feet included – adjustable for level
Cabinet Dimensions: 49.61” (H) x 11.81” (W) x 18.14” (D) / 1260mm (H) x 300mm (W) x 460.7mm (D)
Overall Dimensions: 50.2” (H) x 11.81” (W) x 18.14” (D) / 1275mm (H) x 300mm (W) x 460.7mm (D) (includes grille, feet, and binding posts)
Shipped Dimensions: 54.6” (H) x 16.3” (W) x 22.6” (D) / 1387mm (H) x 415mm (W) x 575mm (D)
Weight Packaged: 110.8 pounds / 50.3 kgs
Weight Unboxed: 96.7 pounds / 43.9 kgs
Driver Specs:
1” Diamond Coated Tweeter
FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.
Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.
Silver tinsel leads for optimal signal transfer and power handling.
5.25” Midrange Drivers
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
Precision-cast aluminum-alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
Vented Kapton voice coil former is exceptionally lightweight for excellent dynamics and transient response.
8” Woofers:
Long stroke motor and suspension for high output.
Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.
Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.
Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.
rossover & Cabinet Specs:
Crossover:
3-way crossover with premium-grade capacitors, inductors, resistors and heavy-trace printed circuit board
Tweeter-to-Midrange crossover: 1.8 kHz
Midrange-to-woofer crossover: 140 Hz
Cabinet:
Acoustically Centered Time Alignment architecture.
Acoustically-centered architecture orients the mid-range and woofer arrays in rotational-symmetry around the tweeter, ensuring that low, mid, and high-frequencies emanate from the same effective point in space, creating a coherent, integrated, faithful acoustic image.
Time-aligned cabinet geometry introduces microsecond-level time delays between the drivers, ensuring that the effective-acoustic-center of each driver is equidistant from the listener. The result is improved linearity and directionality throughout the crossover frequencies, and a more accurate soundstage.
Quad 8” woofers in Force-Balanced Opposed Array energize any room with deep, accurate, evenly distributed bass, while contributing a net-zero vibration force to the cabinet and other components.
Dual 5.25” midrange drivers share a dedicated acoustic-suspension enclosure, symmetrical around the tweeter.
Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response
Extra-thick 1” (25mm) driver baffles ensure a rigid, resonance-free mounting for all drivers.
FEA-optimized ¾” (18mm) cabinet construction, extensive bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.
SVS Ultra Evolution Pinnacle garso kolonėlės
5999,00€
Be PVM: 4957,85€
- Prieinamumas: Sandėlyje
- Modelis: SVS ultra evolution pinnacle
- SKU: pora
