Munich M1
HiFi-Grade Network Streamer, Enjoy the Ultimate Sound Quality
A compact, feature-rich, high-quality network streamer designed for music lovers who want to obtain more audio sources and enjoy the purest audio quality possible. The M1’s hardware and software are optimized for better sound quality by improving many details without compromise.
Easy to Use, Pleasant User Experience
Easy to set up & connect to any stereo amplifier, DAC or speaker(s).
Stay connected to digital music. Play and enjoy anytime.
Master your music at your fingertips via mobile app, VitOS Orbiter.
New Update: Munich M1 is now officially MQA-supported and certified.
Mobile App, VitOS Orbiter
Easily locate and set up a new device, browse and stream music. Listen to all your favorite songs with details displayed such as bitrate, sample rate, bit depth and format (e.g. DSD, WAV or FLAC).
Superior Hardware System
The M1 is born to pursue superior audio performance without any compromise.
Stream and Play in an Audio Network
Play high-resolution streaming services and Internet radio
Roon Ready player
Play music from network shared storage (over SMB/CIFS)
DLNA renderer (player)

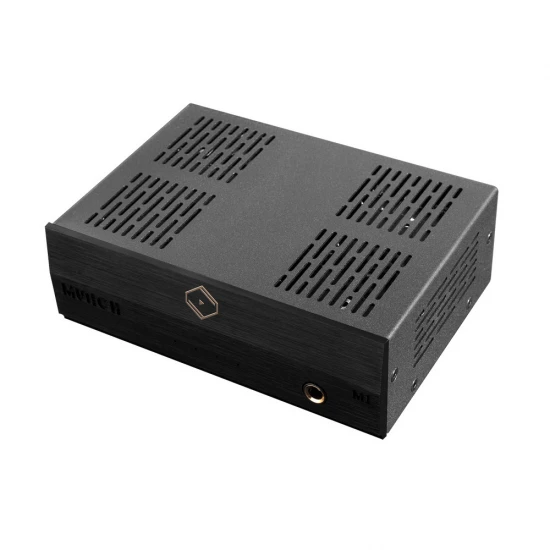

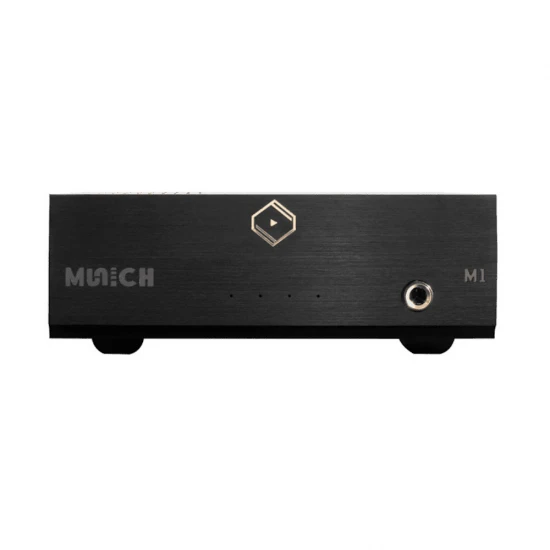

Elegant metal enclosure with a solid aluminum alloy front panel
High-performance yet low-power CPU, 4-core 1.5GHz ARM Cortex-A72
Substantial system memory for large streaming buffers and caches to run multiple applications simultaneously
Advanced circuitry with high quality components
Fan-less heat dissipation with a highly efficient heat-sink (~20˚C lower after applied)
A highly permeable EMI absorber (>120 @1MHz) to reduce electrical interference

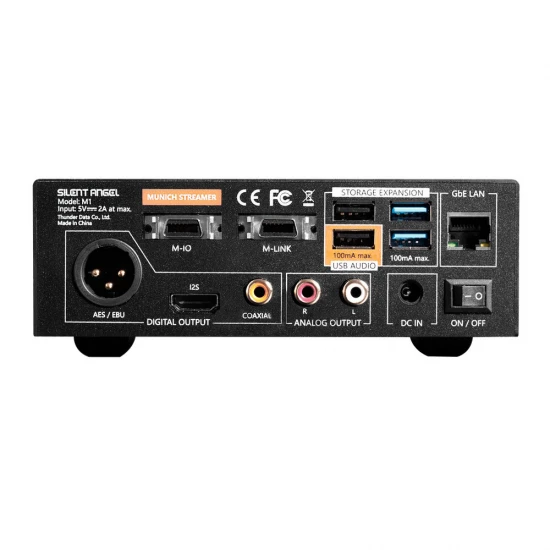

Gold plated audio output ports (RCA L/R, 6.35mm headphone jack, and Coaxial & AES/EBU)
Product Specification
Available Color Black
Power Consumption 10W at max
Headphone Jack 6.35 mm headphone jack 1 x 33 Ohm
1mW, THD+N : 0.0035%
MAX: 375mW THD+N: 0.002% 590 Ohm
Max: 27.5mW, THD+N: 0.0015%
Digital Outputs AES/EBU port, I2S port,
Coaxial port- Supports up to PCM 384KHz and DSD 5.6M (DSD128)
* I2S output signal is not compatible with Holo Audio's DAC
USB Audio port - Supports up to PCM 768KHz and DSD 11.2M (DSD256)
Analog Output RCA (L+R)
- 2Vrms THD+N : 0.00134 / 0.00164%
- Frequency response : 20Hz ~20KHz+- 0.5dB
- SNR : 108dB
USB USB 3.0 x 2
USB 2.0 x 1
- Above USB ports are for external storage
M-IO M-IO x 1*
*Reserved. To be enabled by future firmware upgrade
M-LINK M-LINK x 1*
*Reserved. To be enabled by future firmware upgrade
Ethernet- 1 GbE RJ45
Music Format: AAC, M4A, MP3, OGG, FLAC, WAV, ALAC, DSD(DSF, DFF), WAV64, AIFF, CUE files, WMA, APE
Gapless Playback
MQA Handling- The M1 will transmit the signal to the DAC which supports MQA decoding. MQA is supported only by connecting to the USB-audio port.
LED Indicator
Mute LED x 1
Power LED x 1
Digital Output LED x 2*
*Yellow light on when in DSD format / Green light on when in PCM format
Temperature Operating: 32 ~ 86 °F
Storage: -4 ~ 158 °F
Humidity Operating: 10% ~ 90% RH (non-condensing)
Storage: 5% ~ 95% RH (non-condensing)
Dimensions 6.11(W) inch x 1.99(H) inch x 4.34(D) inch
Weight 2.21 lbs
Silent Angel Munich M1 tinklo grotuvas
1349,00€
Be PVM: 1114,88€
- Prieinamumas: Sandėlyje
- Modelis: M1V2
- SKU: vnt.
