Chord Qutest keitiklis (DAC)

Materials: Precision machined aluminium casing with polycarbonate  buttons and glass viewing portal. Available in black.

Device Power Supply: 5v 2amp Micro USB

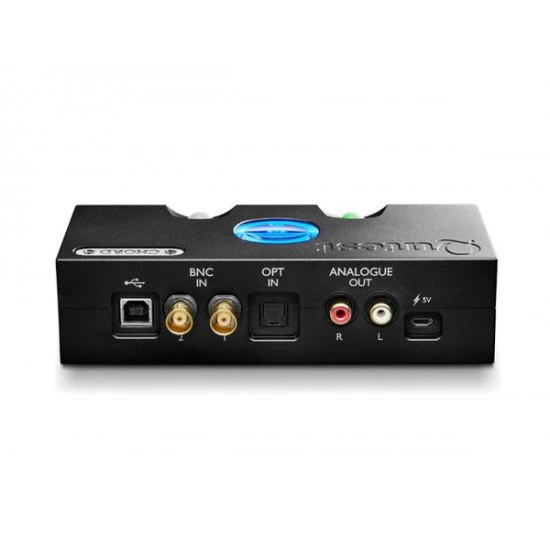

Connectivity (input): USB Type B (White): 44.1kHz – 768kHz – 16bit – 32bit

2x BNC Coax (Red): 44.1kHz – 768kHz – 16bit – 32bit

Optical (Green): 44.1kHz – 192kHz – 16bit – 24bit

Connectivity (output): 1x stereo pair of RCA (Left and Right)

PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 358.8kHz, 384kHz, 717.6kHz, and 768kHz.

DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)

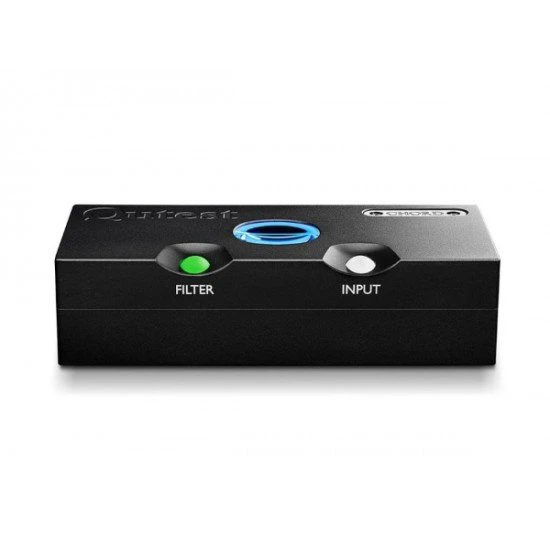

Variable output: Fixed, but selectable between 3v (blue), 2v (green), and 1v (red) via dual press of ‘Filter’ + ‘Input’ upon startup

Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS

Digital designer: Rob Watts

Mechanical Designer: John Franks

Country of manufacture: England

Chipset: Chord Electronics custom coded Xilinx Artix 7 (XC7A15T) FPGA

Tap-length: 49,152

Pulse array: 10 element pulse array design

Frequency response: 20Hz – 20kHz +/- 0.2dB

Output stage: Class A

THD: <0.0001% 1kHz 3v RMS 300Ω

THD and noise at 3v RMS: 117dB at 1kHz 300ohms ‘A’ wighted (reference 2.5v)

Noise 2.6 uV ‘A’ weighted: No measurable noise floor modulation

Channel separation: 138dB at 1kHz 300Ω

Weight: 770g

Dimensions: 41mm (H) x 160mm (W) x 72mm (D)

Boxed Weight: 1500g
