Exposure XM3 korekcinis stiprintuvas

Features

Large 200VA custom made toroidal transformer for power supply
Multiple power supply capacitors in parallel for low ESR
All discrete transistor audio stages
High quality resistors & capacitors used in the signal path

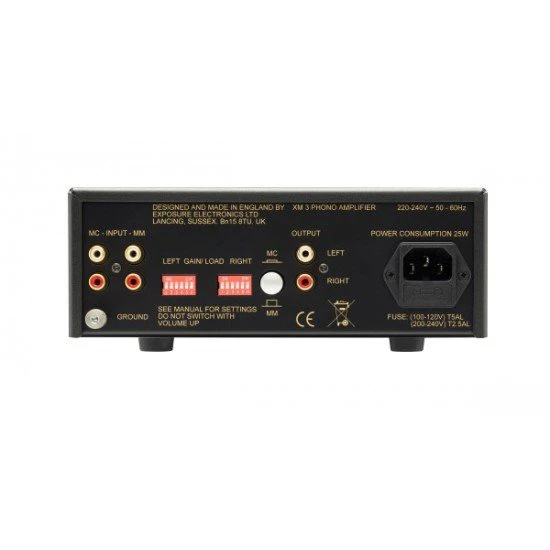

Separate MM & MC inputs selectable on the back panel
Adjustable loading & gain switches on the back panel

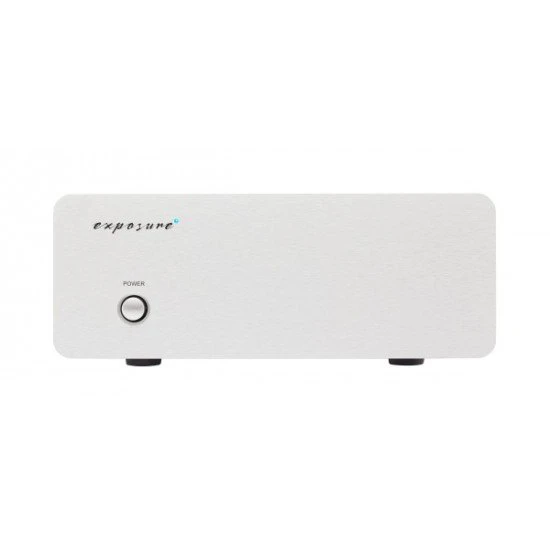

High quality all aluminium case work and extruded front panel
Three year guarantee

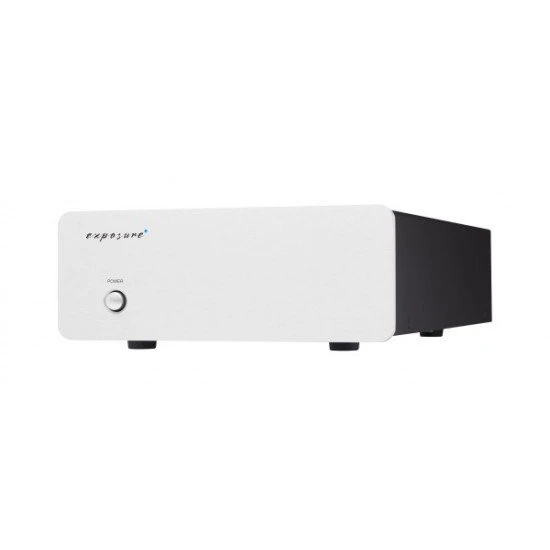

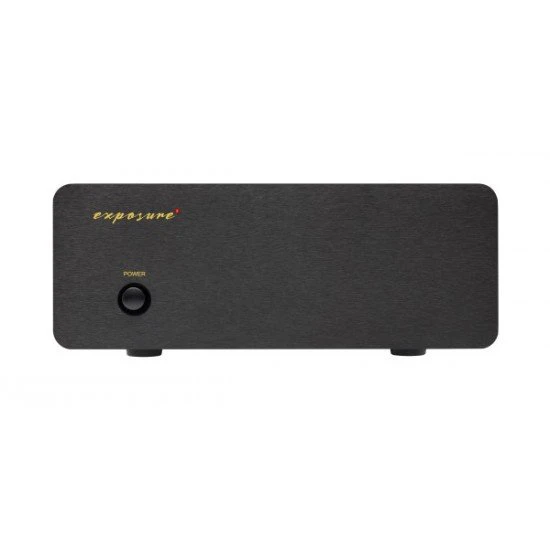

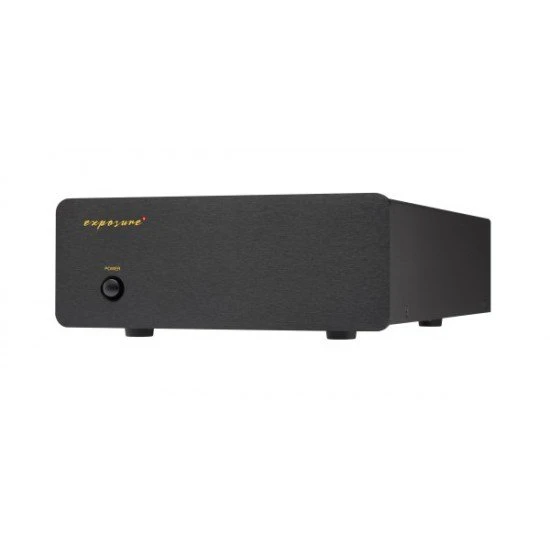

Available in black or titanium

Specifications

Moving Magnet Input

Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
Signal to Noise ratio, ref 1KHz & 350mV out :
Gain Switch 4 ON : >70dB
Gain Switch 4 OFF : >78dB
Moving Coil Input

Sensitivity : 350uV input for 350mV output, 60dB gain setting
Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)

General Specifications

Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input :
Maximum Ouput Voltage : 7.8V RMS 1KHz
Output Impedance : 50 ohms
Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
Power Consumption : <25W
Dimensions (WxHxD) : 218mm x 89mm x 348mm
Net Weight (unpacked) : 4kg
Gross Weight (packed) : 5kg
