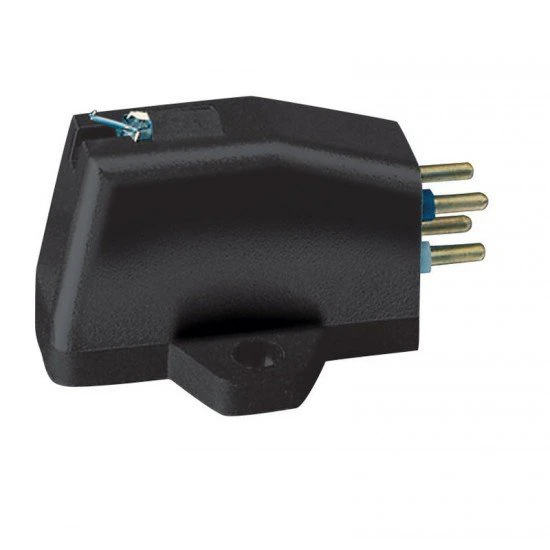

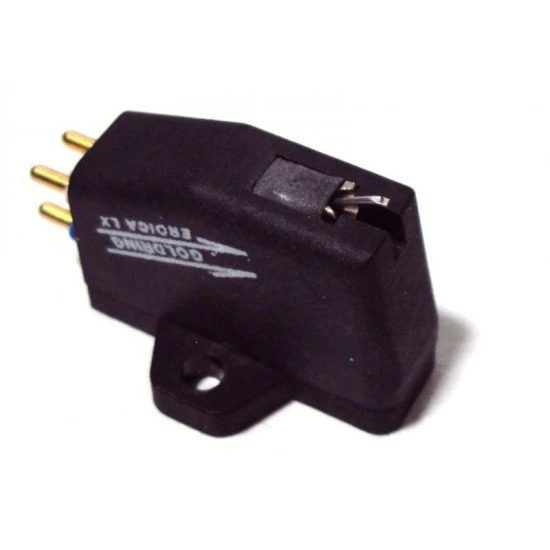

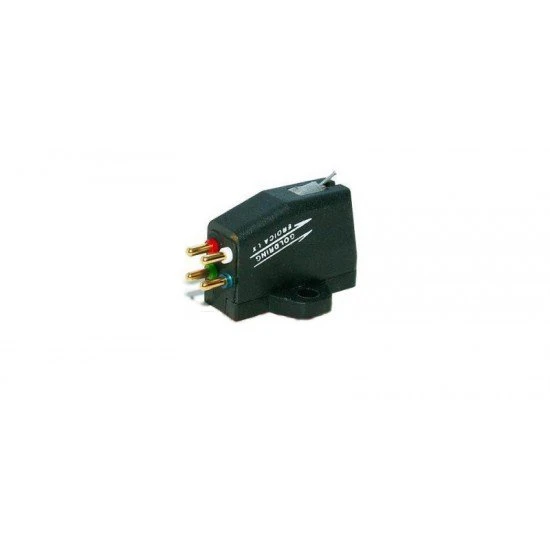

Goldring Eroica LX patefono galvutė

The Eroica is a true audiophile moving coil cartridge which features an advanced pole shoe design using a powerful rare earth Neodymium magnet. This unique construction allows a shortened magnetic path, which helps reduce the amount of iron in the cartridge, keeping the weight down to just 5.5gms. Rigidity is also of prime importance and the Pocan body of the cartridge enables it to be clamped solidly to the headshell, keeping energy losses to an absolute minimum. This cartridge uses a Gyger II line contact stylus width a low output. The Eroica offers an exceptionally high standard of performance and reliability.

Frequency Response    20Hz-22kHz±3dB
Channel Balance    1dB max. @ 1kHz
Channel Separation    25dB @ 1kHz
Sensitivity    0.5mV±1dB, 1kHz @ 5 cm/sec
Static Compliance    18mm/N
Equivalent tip mass    0.35 mg
Vertical Tracking Angle    20°
Stylus Radius    Gyger II
Stylus Type    Non-Replaceable
Load Resistance    100 Ohm
Load Capacitance    100-1000pF
Internal Inductance    12 µH
Internal Resistance    8 Ohm
Cartridge Weight    5.5g
Fixing Centre    0.5�?� (12.7mm)
Playing Weight    1.5-2.0g (1.7g nom.)
